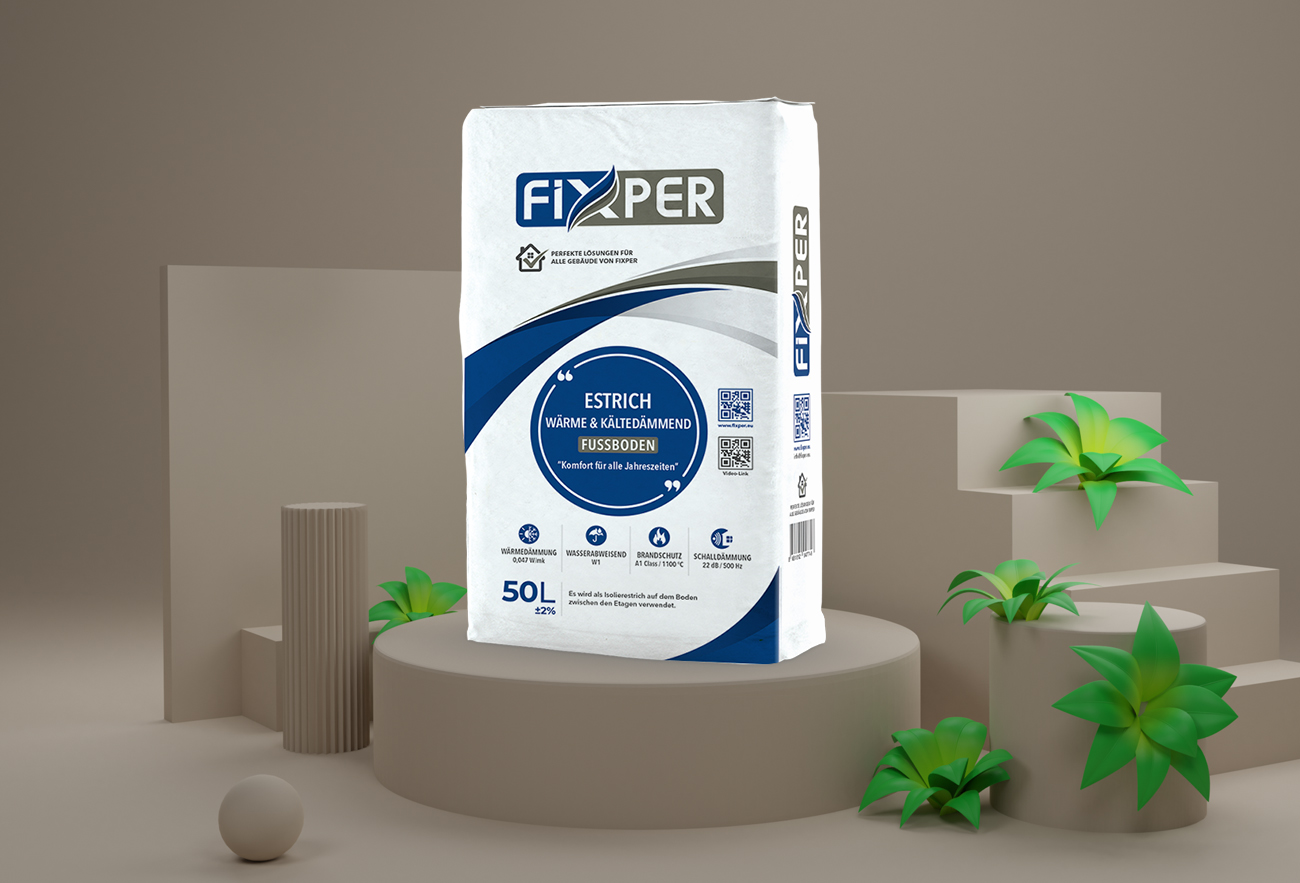

Insulated Light Screed (Ground)

Wärmedämmputz Innen

A ready-mixed screed insulation plaster containing Portland cement, expanded silicates and inorganic fillers. It is modified with additives, which are not harmful to health and environment, according to European filler directives and ISO requirements.It fulfils HEAT, SOUND and FIRE insulation conditions.

USAGE AREAS

It can be used as between floors as screed insulation.

SURFACE PREPARATION

The application surface floor covering, must be cleaned from dust first. Prevent adhesion materials such as paint and oil should be cleaned and the preparation should be completed.

APPLICATION

Consistently prepared floor screed is applied in a single layer with a steel trowel or plaster pump on a slightly damp surface and gauge is applied. No foreign material should be added to the prepared mixture. (Lime, Gypsum, Cement etc.) Zement etc.).

APPLICATION DETAILS

In manual application, it should be mixed with an average of 8-10 liters of water with a low speed drill for 3-4 minutes, poured onto the floor and allowed to dry. In machine application, it should be pumped to the surface by mixing with an average of 8-10 liters of water. When the desired thickness is reached, it should be allowed to dry.

APPLICATION CONDITIONS

Application surface and ambient temperature should be above 5 °C. Considering excessive moisture loss at temperatures above 35 °C, mixing water should be increased and the surface should be kept moist by wetting for 2 days after the surface hardening phase.

ISSUES TO BE CONSIDERED

Avoid application under strong wind or sun. The time increases at low temperatures and the time decreases at high temperatures. It should not be applied on frozen, melting or freezing surfaces within 24 hours. Appropriate plaster mesh should be used at different material junctions and points where movement may be considered.

STORAGE TRANSPORT

Protect from frost, rain and other weather conditions. 70 Bags in 1 pallet is 3.500 L

ENVIRONMENTAL IMPACTS

Not classified as dangerous.

Technicial Specifications

  • Packing
    50L / Bag ( ± 2 %)
  • Appearance
    Gray Powder
  • Application Temperature
    -5°C+30°C
  • Application Thickness
    20 mm – 50 mm
  • Application Time
    45 Minuten
  • Method of Application
    Steel Trowel-Pump
  • First Drying
    1 Hours
  • Setting Time
    72 Hours
  • Fire Response Class
    A1
  • Theoretical Powder Consumption
    18-20 L/m²/cm
  • Dry Density
    340 Kg/m³
  • Thermal Conductivity
    0,047 W/mK
  • Compressive Strength
    CSll (2,2 N/mm²)
  • Water vapor permeability
    8
  • Capillary Water Absorption
    W1
  • Adhesion Strength
    3,2 Kgf/cm
  • Sound Insulation (4cm Thickness)
    22 dB / 500 Hz
  • Fire Prevention (4cm Thickness)
    F120 / 120 Minutes
